XY-series Drilling rigs
XY-series Drilling rigs
Shandong Relied Heavy Industry Co.,Ltd is one of the toppest XY-series Drilling rigs in China.During these years of exporting, Shandong Relied Heavy Industry Co.,Ltd now has rich experience in the worldwide markets.

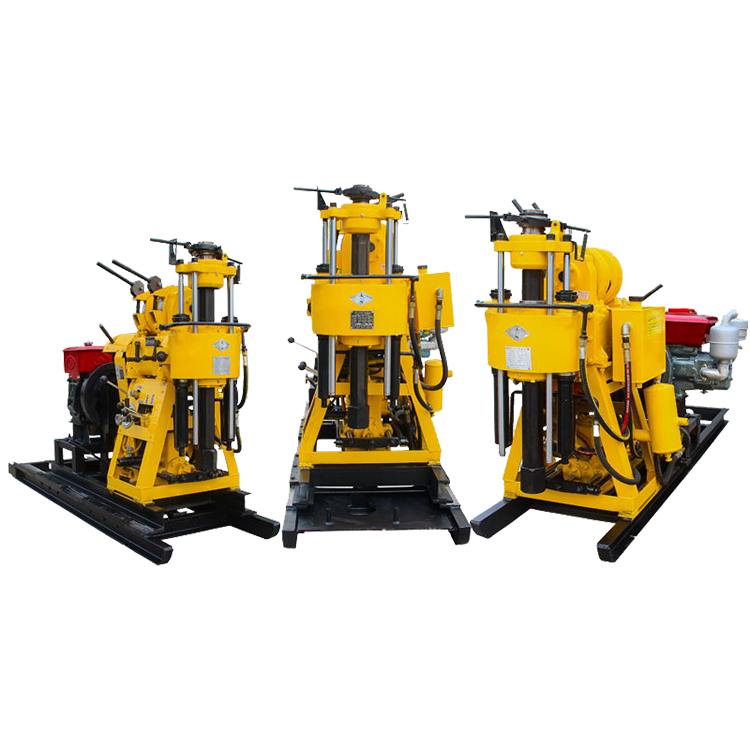

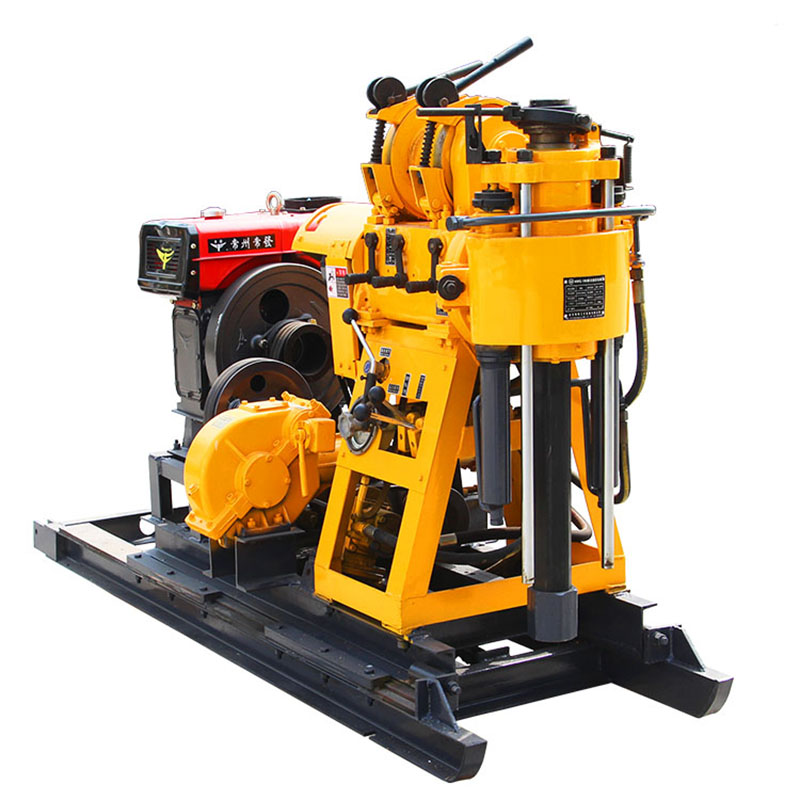

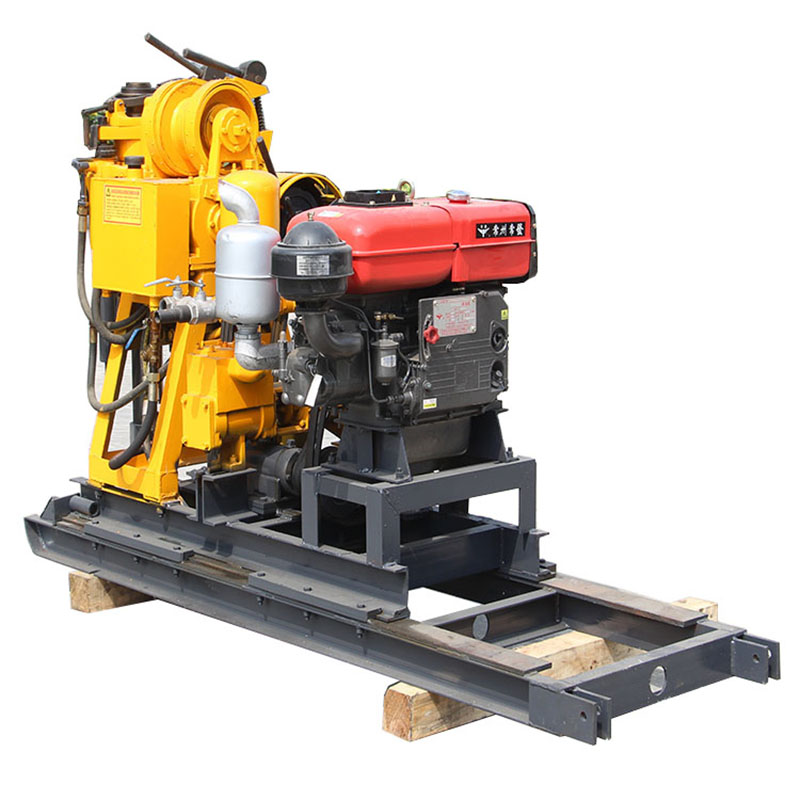

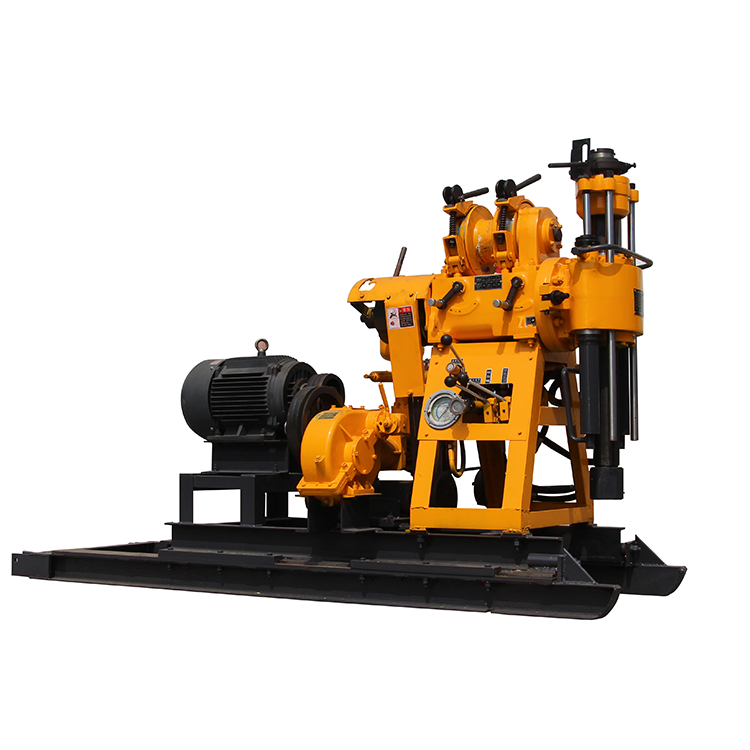

RLD-130/180/200 series drilling rigs can add drilling rig shift slides, which can realize quick replacement of drilling tools, improve work efficiency and reduce labor intensity.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3, can drill 2-9 grade sandy clay and rock formations.
main feature:
1. With hydraulic automatic feeding mechanism, it can improve drilling efficiency and reduce labor intensity of workers.
2. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping the machine. The operation is convenient, safe and reliable.
3. The hoist is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts
4. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to cope with complex geological conditions such as gravel and pebbles
5. This machine adopts a taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free
Scope of application:
1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3, can drill 2-9 grade sandy clay and rock formations.
main feature:
1. With hydraulic automatic feeding mechanism, it can improve drilling efficiency and reduce labor intensity of workers.
2. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping the machine. The operation is convenient, safe and reliable.
3. The hoist is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts
4. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to cope with complex geological conditions such as gravel and pebbles
5. This machine adopts a taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free
| Tech parameter | Model | RLD-130 | RLD-180 | RLD-200 |
| Drilling depth(mm) | 130 | 180 | 200 | |
| Open hole dia.(mm) | 220 | 220 | 325 | |
| End hole dia.(mm) | 75 | 75 | 75 | |
| Drill rod dia.(mm) | 42-60 | 42-60 | 42-60 | |
| Drill angle(°) | 90-75 | 90-75 | 90-75 | |
| Matching power (kW) | 13.2 | 13.2 | 15 | |
| Weight without power (kg) | 560 | 610 | 1150 | |
| Dimension (mm) | 2.4*0.7*1.4 | 2.4*0.6*1.4 | 2.7*0.9*1.6 | |
| Spindle | Speed (r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 | |
| Max.torque(N.m) | 890 | 980 | 2200 | |
| Thrust (k.N) | 40 | 40 | 40 | |
| Lifting force (k.N) | 60 | 60 | 60 | |
| Dimension | Single rope lift force(kg) | 1600 | 2000 | 2400 |
| Lifting speed Head(m/min) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 | |
| Rope dia.(mm) | φ9.3 | φ9.3 | φ12.5 | |
| Roll capacity(m) | 27 | 35 | 35 | |
| Drill mast | Rated load(ton) | 2 | 2 | 5 |
| Height(m) | 6 | 6 | 6 | |
| Winch | Dispalcement(L/min) | 95 | 95 | 145 |
| Max.pressure(Mpa) | 1.2 | 1.2 | 2 | |
| Times(pcs/min) | 93 | 93 | 93 | |
| Inlet hose dia. (mm) | 51 | 51 | 51 | |
| Outlet hose dia. (mm) | 32 | 32 | 32 |
