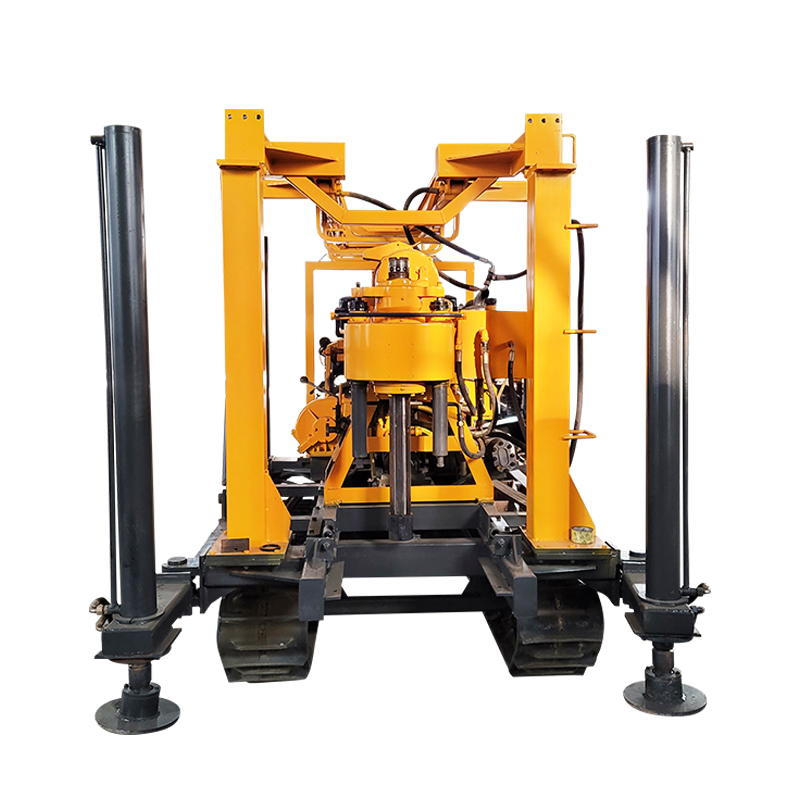

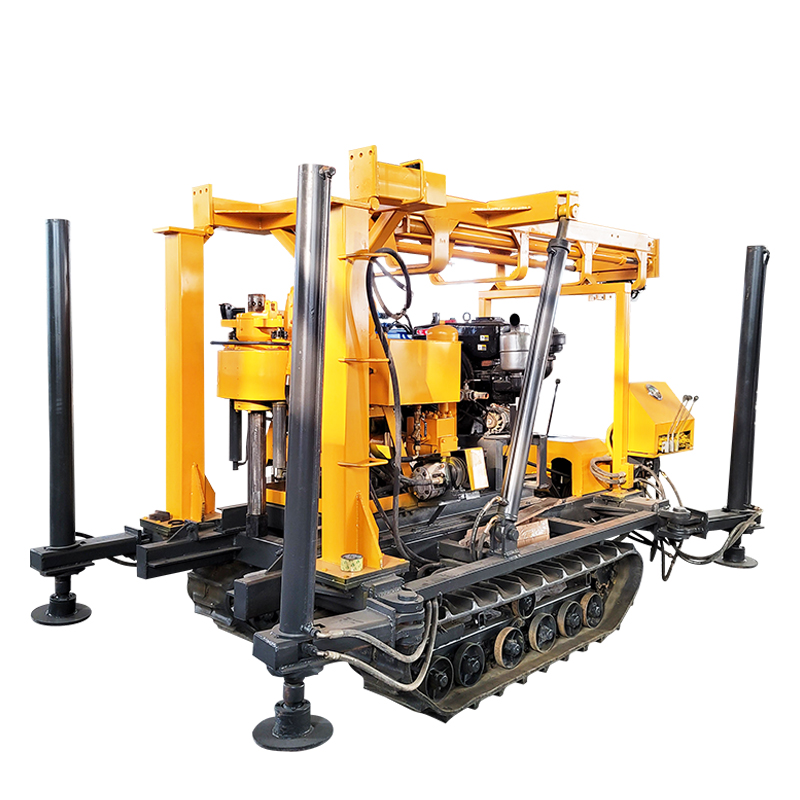

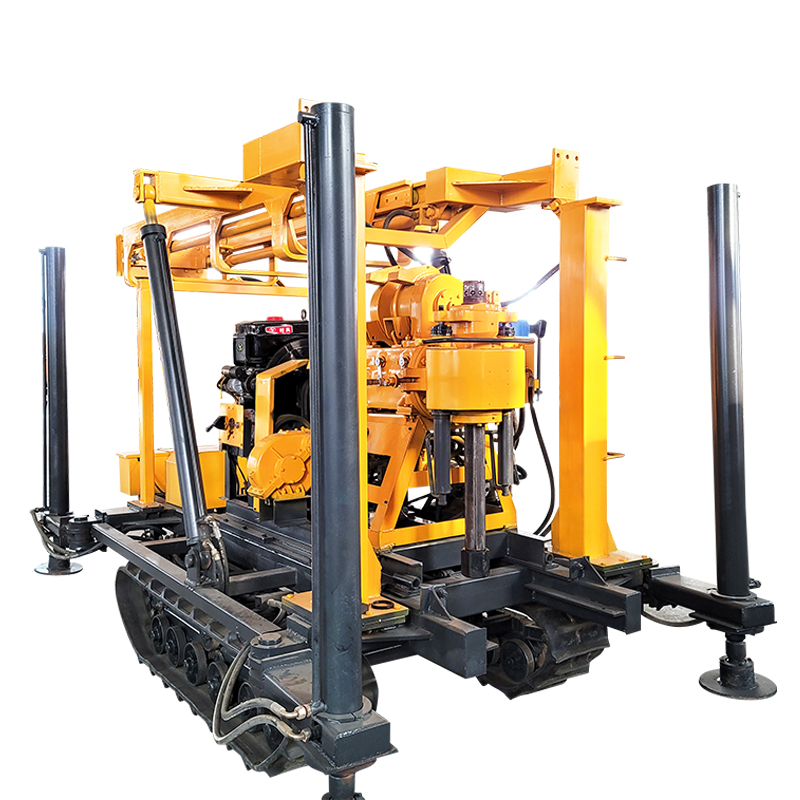

XYD Series Drilling Rigs
XYD Series Drilling Rigs
Shandong Relied Heavy Industry Co.,Ltd is one of the toppest Crawler drilling rigs in China.During these years of exporting, Shandong Relied Heavy Industry Co.,Ltd now has rich experience in the worldwide markets.
The mechanical top drive series drilling rig is a water well drilling equipment that integrates water drilling
and air drilling functions independently developed by the company. The drilling rig adopts a vehicle 525
gearbox, which is sensitive and convenient to switch gears, and its transmission efficiency is doubled
compared to hydraulic transmission. Power consumption is reduced by 35%, which is more efficient and
energy-saving. It solves the difficult problems of air DTH hammer drilling in soil layers and low construction
efficiency of rotary drilling rigs for hard rock layers, gravel and pebble layers.
1. The drill speed can reach 27-901r/min, and the maximum output torque is 10500N.m.
2. The drilling rig adopts a long-stroke double-speed mechanism, a mechanical power head, and a power head stroke of 3500MM, which is used to improve drilling efficiency and reduce the occurrence of drill blockage and drill burn accidents.
3. The drilling rig adopts dual oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for confluence when lifting and lowering the drill; the power loss is small, and the auxiliary time is short.
4. The crawler chassis is adopted, and the outrigger cylinder can be automatically loaded with a stroke of 1.5m, which is convenient for relocation and transportation.
5. The drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, which can be expanded according to the technological requirements of different users
2. The drilling rig adopts a long-stroke double-speed mechanism, a mechanical power head, and a power head stroke of 3500MM, which is used to improve drilling efficiency and reduce the occurrence of drill blockage and drill burn accidents.
3. The drilling rig adopts dual oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for confluence when lifting and lowering the drill; the power loss is small, and the auxiliary time is short.
4. The crawler chassis is adopted, and the outrigger cylinder can be automatically loaded with a stroke of 1.5m, which is convenient for relocation and transportation.
5. The drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, which can be expanded according to the technological requirements of different users
| Model | XYD-130 | XYD-180 | XYD-200 |
| Drilling depth(mm) | 130 | 180 | 200 |
| Open hole dia.(mm) | 220 | 220 | 325 |
| End hole dia.(mm) | 75 | 75 | 75 |
| Drill rod dia.(mm) | 42-60 | 42-60 | 42-60 |
| Drill angle(°) | 90-75 | 90-75 | 90-75 |
| Supporting power (kW) | 13.2 | 13.2 | 15 |
| Weight (kg) | 3350 | 3400 | 3600 |
| Dimension (mm) | 3.8*1.95*2.7 | 3.8*1.95*2.7 | 3.8*1.95*2.7 |
| Vertical shaft speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Vertical axis stroke(mm) | 450 | 450 | 450 |
| Track specification(mm) | 350*90*48 | 350*90*48 | 350*90*48 |
| Climding angle(°) | 20 | 20 | 20 |
| Walking speed(km/h) | 10 | 10 | 10 |
| Hydraulic outrigger height(mm) | 1300 | 1300 | 1300 |
| Rated load(ton) | 2 | 2 | 5 |
| Drill tower structure | Full hydraulic | Full hydraulic | Full hydraulic |
| Effective height(m) | 6 | 6 | 6 |
| Flow rate(L/min) | 160 | 160 | 160 |
| Max.pressure(Mpa) | 1.3 | 1.3 | 1.3 |
| No. of reciprocations(pcs/min) | 165 | 165 | 165 |
| Dia. of suction pipe(mm) | 51 | 51 | 51 |
| Outlet hose dia. (mm) | 32 | 32 | 32 |
