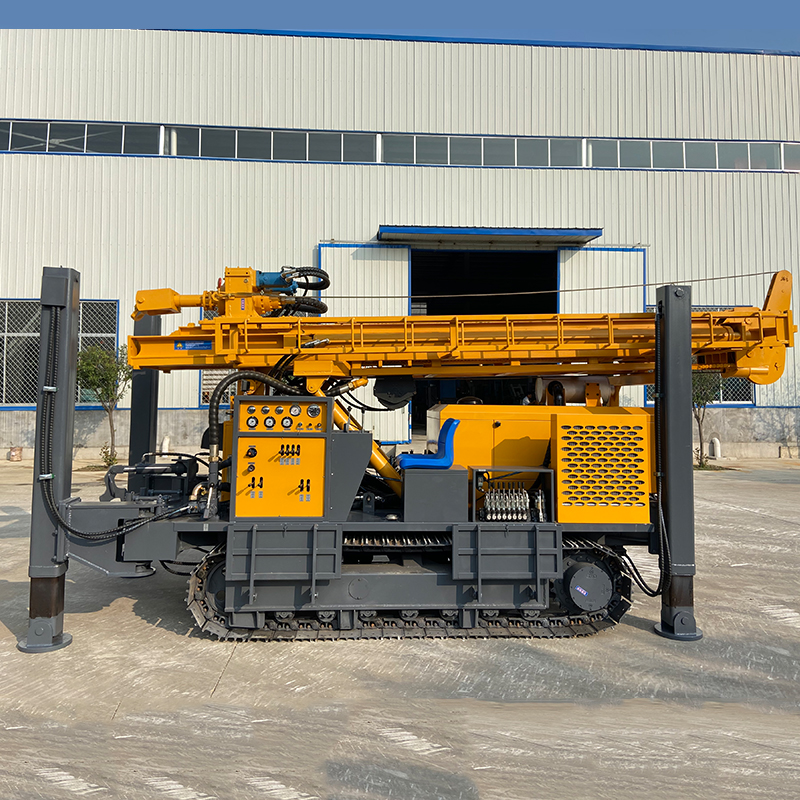

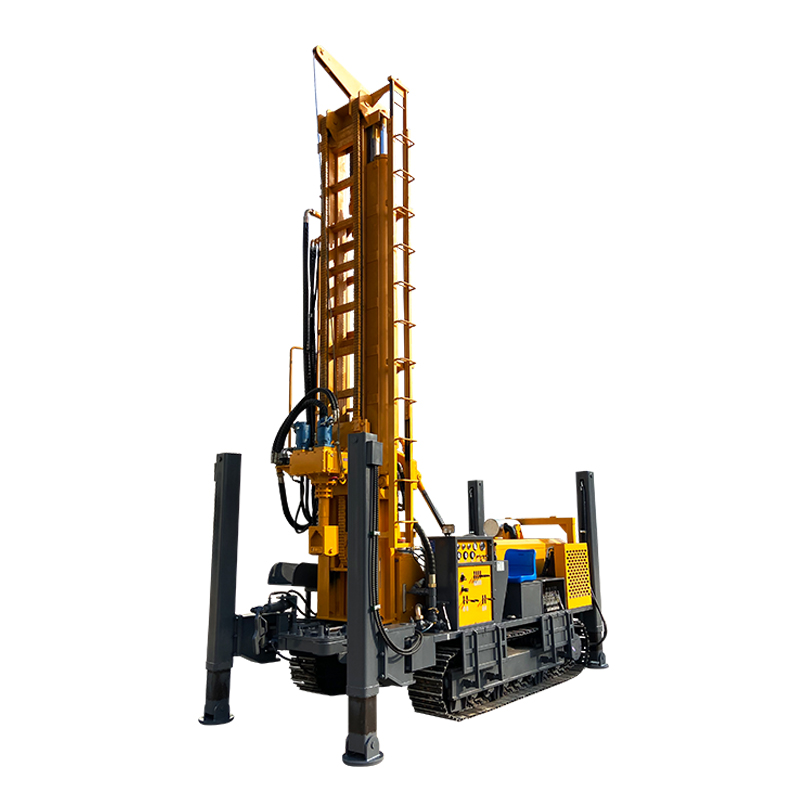

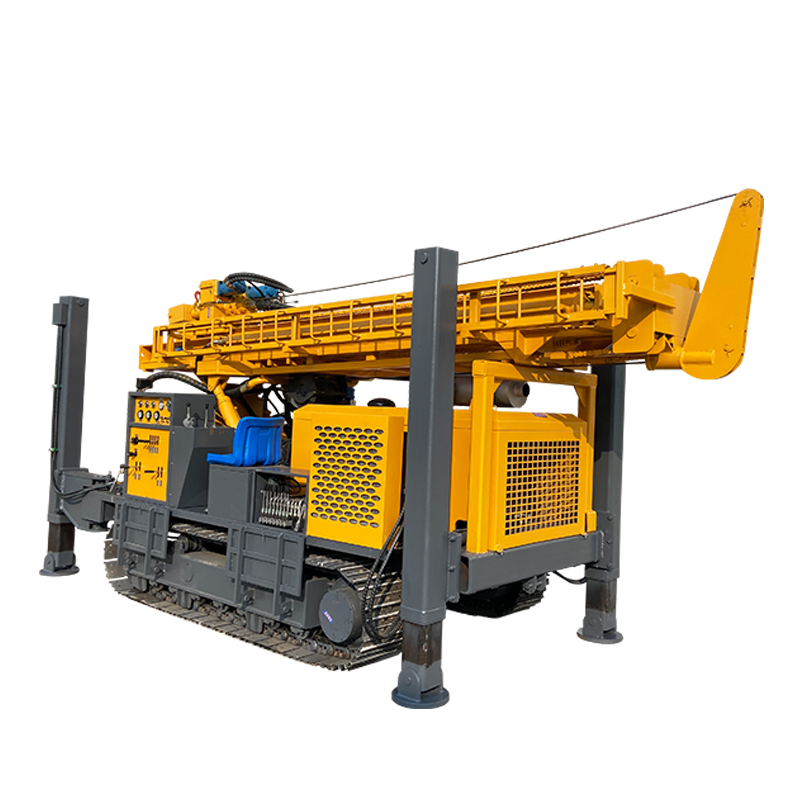

RLD680 crawler water well drilling rig

Weight(T)

13

Drill pipe Dia.(mm)

Φ102 Φ108 Φ114

The hole Dia.(mm)

140-400

Drill pipe length(m)

1.5m  2m  3m  6m

Drill depth(m)

680

Rig lifting force(T)

30

One-time advance length(m)

6.6

Rapid rise speed(m/min)

20

Walking speed(km/h)

2.5

Fast feeding speed(m/min)

40

Climbing angles(Max.)

30

Width of loading(m)

2.95

Equipped capacitor(kw)

153

Hoisting force of winch(T)

2

Using air pressure(MPA)

1.7-3.5

Swing torque(N.m)

8850-13150

Air consumption(m³/min)

17-42

Dimension(mm)

6300*2300*2650

Swing speed(rpm)

45-140

Equipped with hammer

Medium and high wind pressure series

The penetration efficiency(m/h)

15-35

High leg stroke(m)

1.7

The engine brand

Cummins engine
