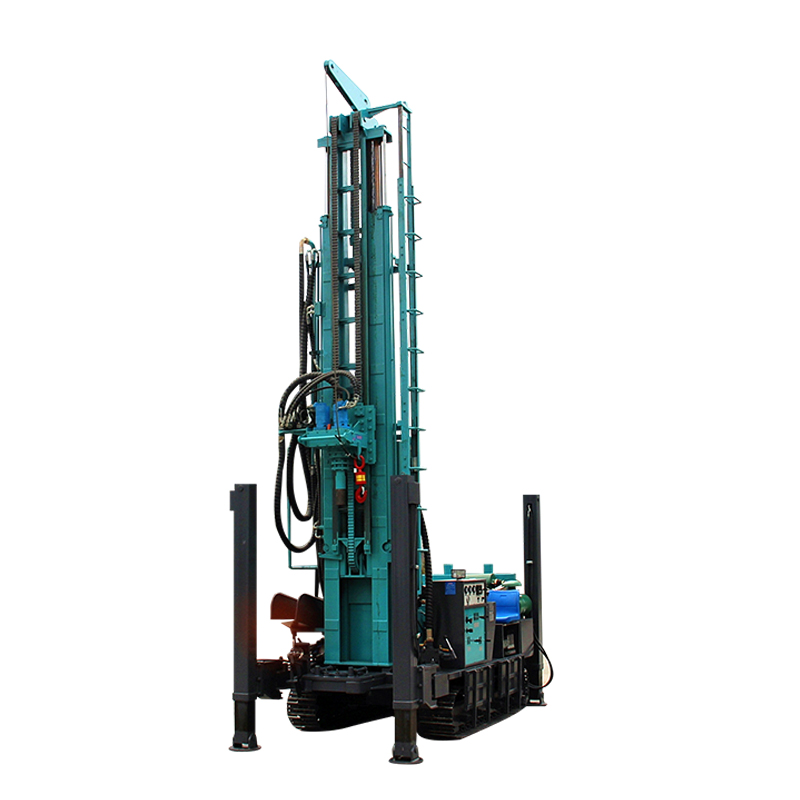

RLD380 crawler water well drilling rig

Weight(T)

9.2

Drill pipe Dia.(mm)

Φ89 Φ102

The hole Dia.(mm)

140-325

Drill pipe length(m)

1.5m  2m  3m  6m

Drill depth(m)

380

Rig lifting force(T)

24

One-time advance length(m)

6.6

Rapid rise speed(m/min)

20

Walking speed(km/h)

2.5

Fast feeding speed(m/min)

40

Climbing angles(Max.)

30

Width of loading(m)

2.8

Equipped capacitor(kw)

96

Hoisting force of winch(T)

2

Using air pressure(MPA)

1.7-3.4

Swing torque(N.m)

6500-9000

Air consumption(m³/min)

17-36

Dimension(mm)

5950*2100*2550

Swing speed(rpm)

66-135

Equipped with hammer

Medium and high wind pressure series

The penetration efficiency(m/h)

15-35

High leg stroke(m)

1.6

The engine brand

Yuchai engine
