Model |
XYC-130 |
XYC-180 |
XYC-200 |
|
Drilling depth(m) |
130 |
180 |
200 |
|
Open hole dia.(mm) |
220 |
220 |
325 |
|
End hole dia.(mm) |
75 |
75 |
75 |
|
Drill rod dia.(mm) |
42-60 |
42-60 |
42-60 |
|
Drill angle(°) |
90-75 |
90-75 |
90-75 |
|
Supporting power (kW) |
13.2 |
13.2 |
15 |
|
Weight without power (kg) |
2750 |
2800 |
3000 |
|
Dimension (m) |
4*1.7*2.3 |
4*1.7*2.3 |
4*1.7*2.3 |
|
Vertical shaft speed(r/min) |
142/285/570 |
130/300/480/730/830/1045 |
64/128/287/557 |
|
Vertical axis stroke(mm) |
450 |
450 |
450 |
|
Model of motor tricycle |
7YP-1475D5/17500A3 |
7YP-1475D5/17500A3 |
7YP-1475D5/17500A3 |
|
Emission standard |
GB19756-2005(Ⅱ) |
GB19756-2005(Ⅱ) |
GB19756-2005(Ⅱ) |
|
Rated power of motor tricycle(kw) |
16.2/20.2 |
16.2/20.2 |
16.2/20.2 |
|
Rated speed(r/min) |
2200 |
2200 |
2200 |
|
Rated load of drill mast(ton) |
18 |
18 |
18 |
|
Effective height(m) |
6.5 |
6.5 |
6.5 |
|
Flow rate(L/min) |
160 |
160 |
160 |
|
Max.pressure(Mpa) |
1.3 |
1.3 |
1.3 |
|
No. of reciprocations(pcs/min) |
165 |
165 |
165 |
|
Dia. of suction pipe(mm) |
51 |
51 |
51 |
|
Outlet hose dia. (mm) |
32 |
32 |
32 |

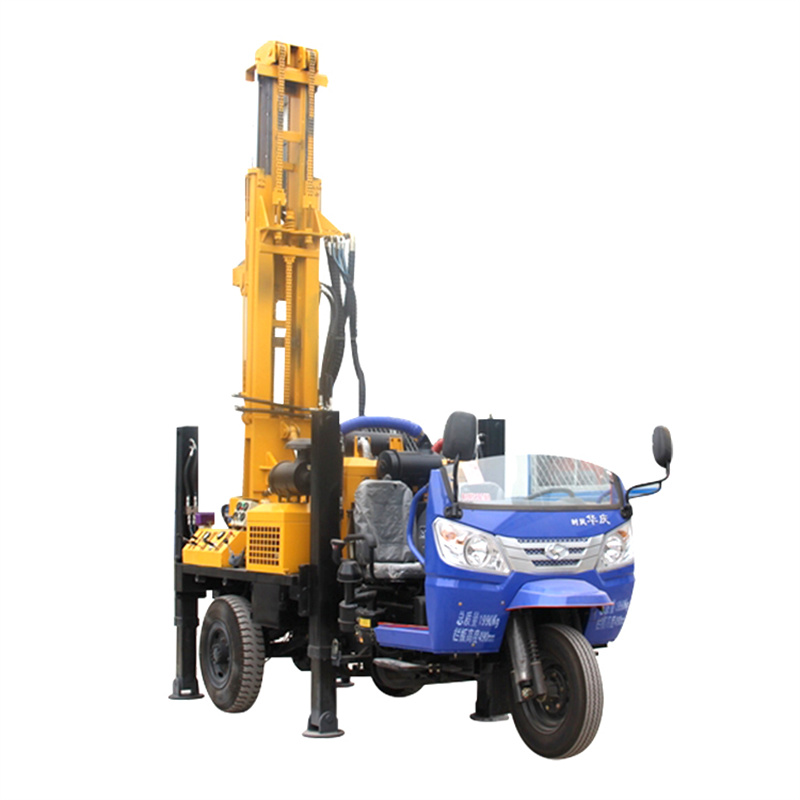

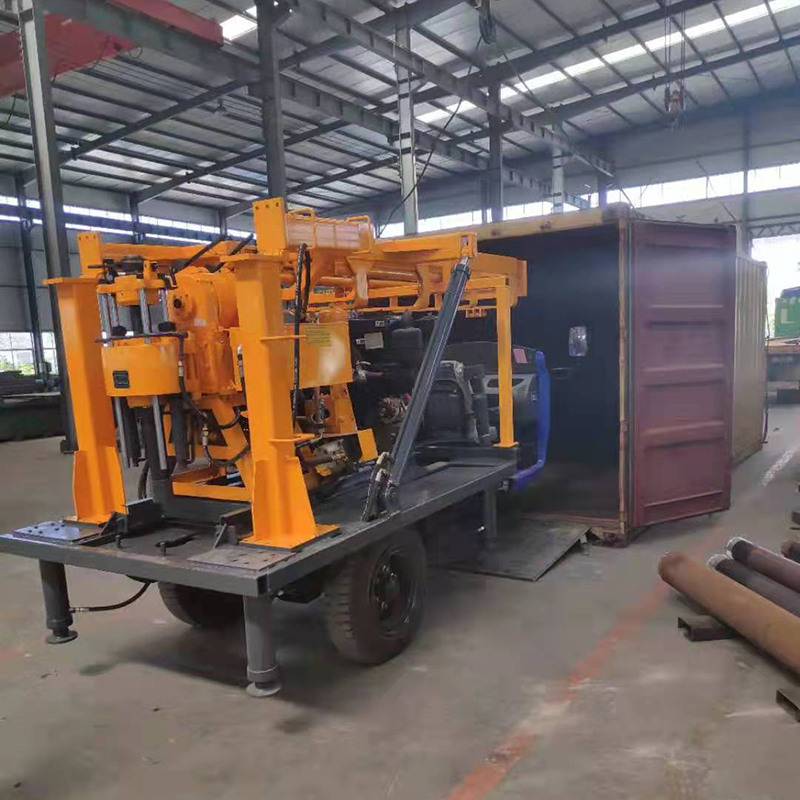

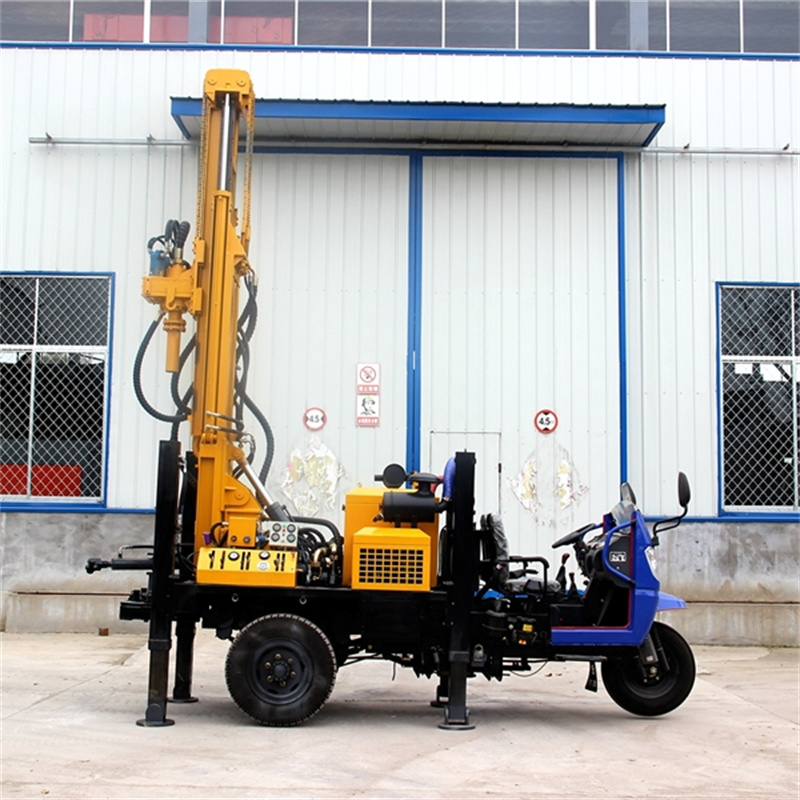

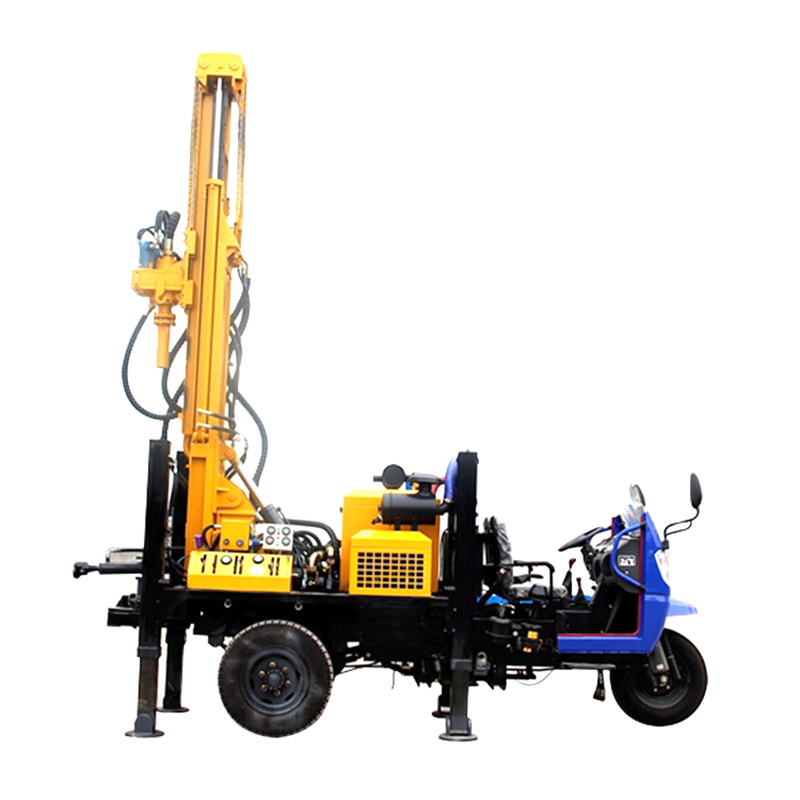

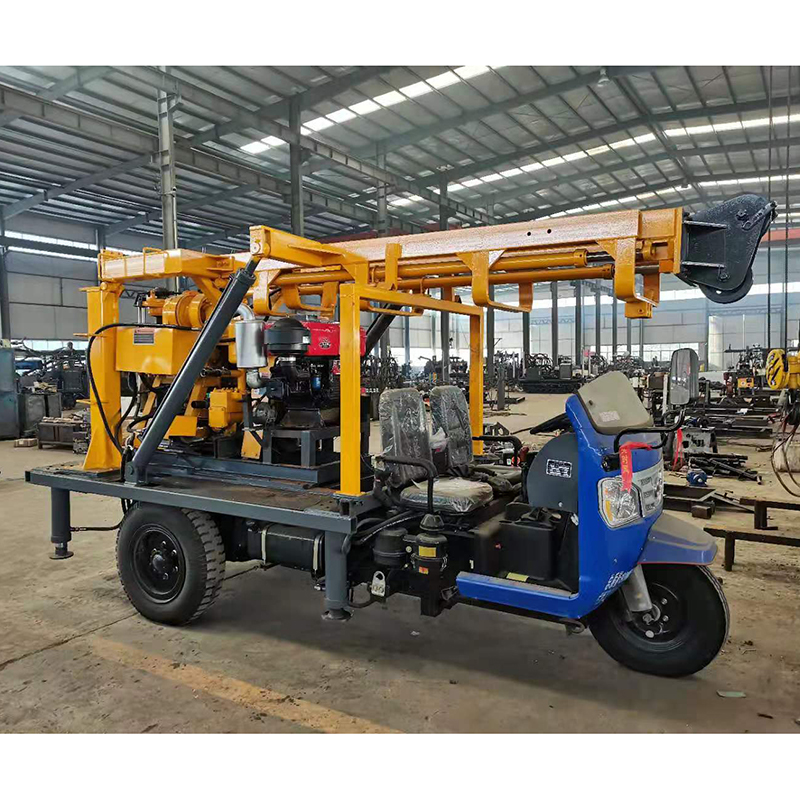

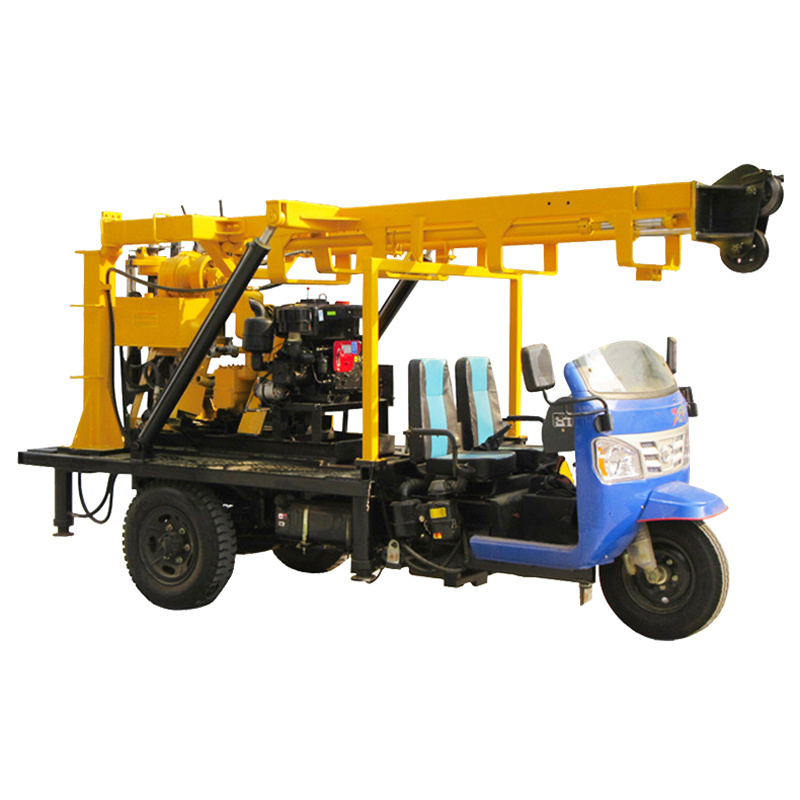

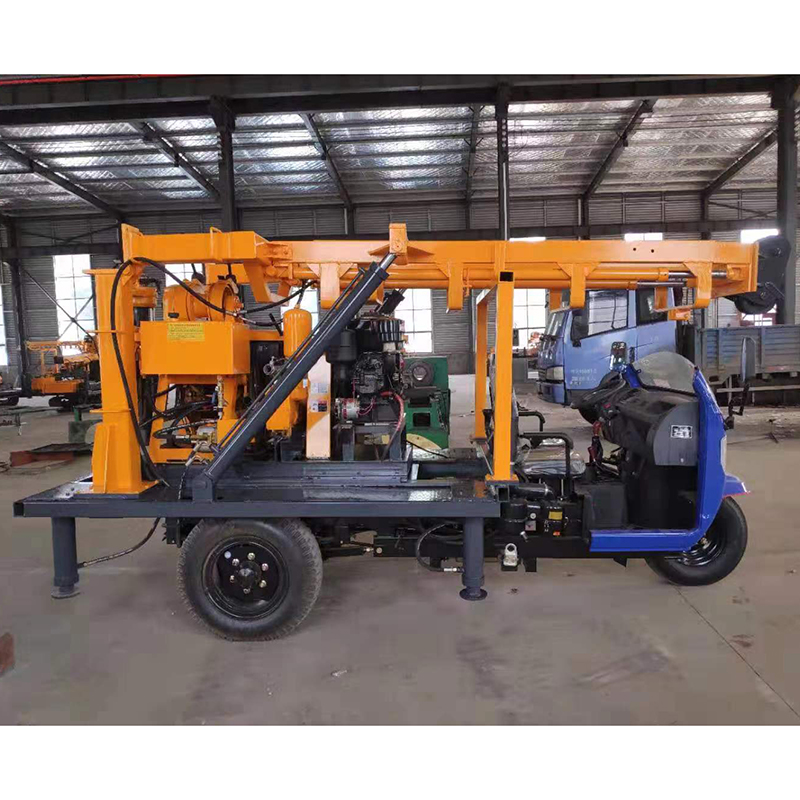

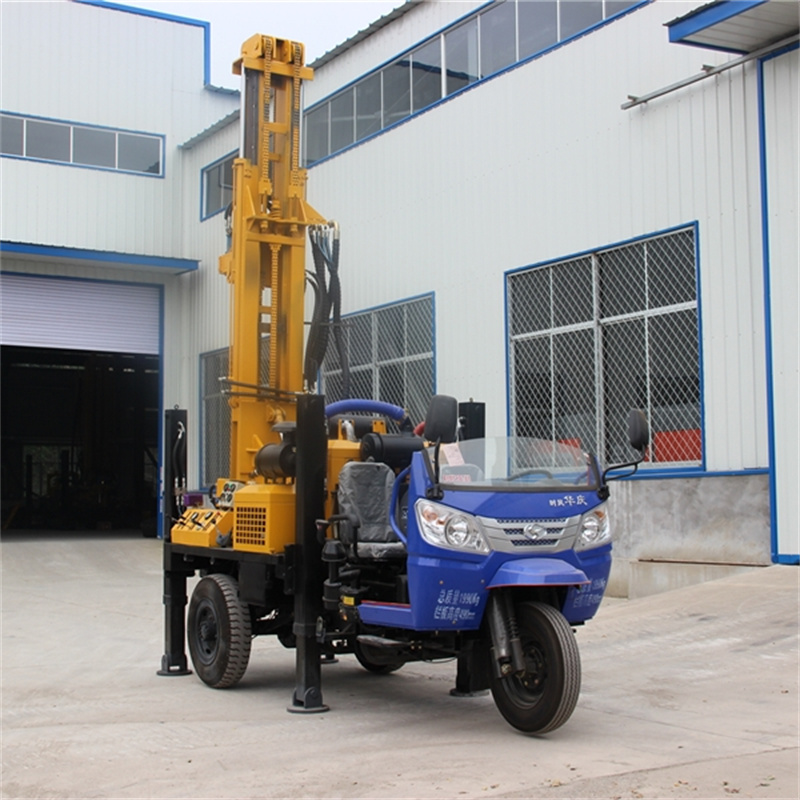

Motor tricycle mounted drilling rig is designed to meet the needs of high-speed, high efficiency and high mobility in field drilling. The rigs own reasonable structure, simple operation, easy maintenance and speedy transport.
Main features:
1, Truck-mounted drilling rig are multi-function hydraulic spindle rotary drilling rig.
2, The machine uses WUZHANG motor tricycle 7y-1475D5/17500A3 as chassis. Drilling rig and mud pump are installed on the chassis in reasonable &compact layout.
3, Equipped with BW-160 mud pump, high pressure, big flow, it ensures drill depth and diameter.
4, Automatic hydraulic-control drill mast, it easy to operate and ensure safety.
