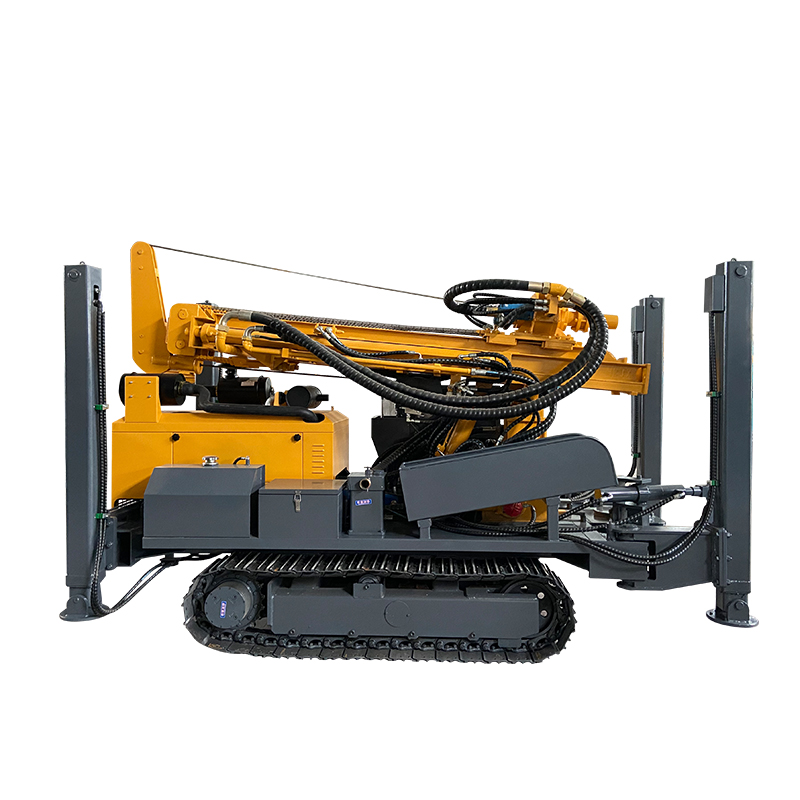

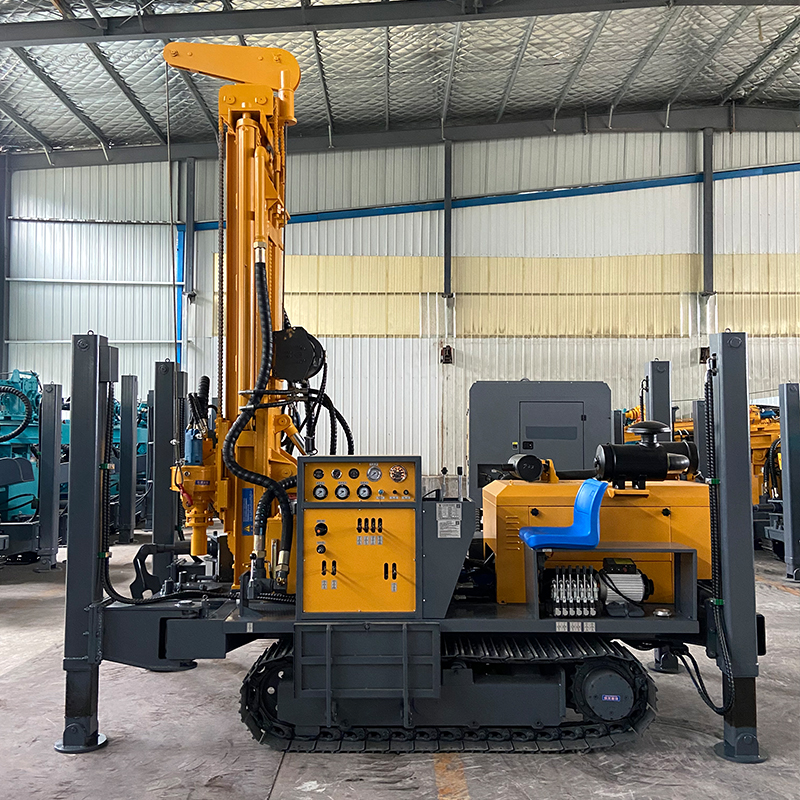

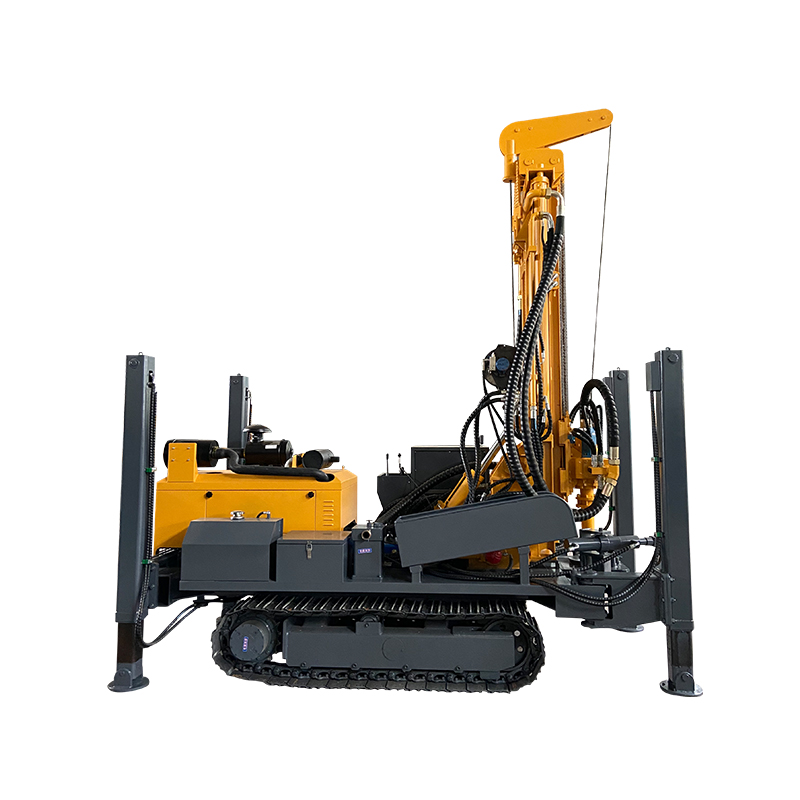

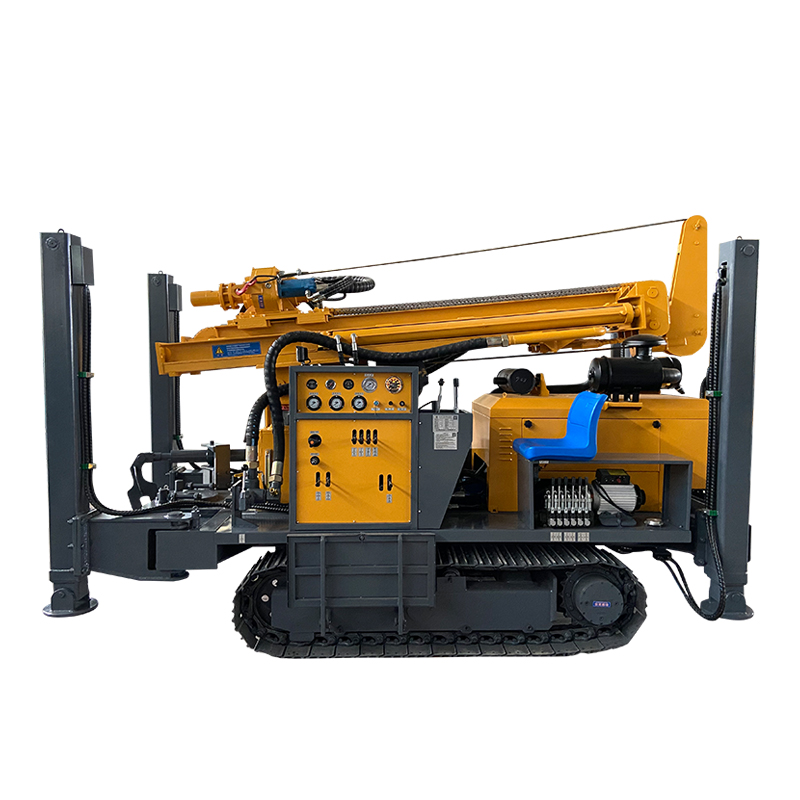

RLD260 crawler water well drilling rig |
|||
|
Weight(T) |
6.5 |
Drill pipe Dia.(mm) |
Φ76 Φ89 |
|
The hole Dia.(mm) |
140-305 |
Drill pipe length(m) |
1.5m 2m 3m |
|
Drill depth(m) |
260 |
Rig lifting force(T) |
15 |
|
One-time advance length(m) |
3.3 |
Rapid rise speed(m/min) |
24 |
|
Walking speed(km/h) |
2.5 |
Fast feeding speed(m/min) |
28 |
|
Climbing angles(Max.) |
30 |
Width of loading(m) |
2.73 |
|
Equipped capacitor(kw) |
70 |
Hoisting force of winch(T) |
1.5 |
|
Using air pressure(MPA) |
1.7-3.0 |
Swing torque(N.m) |
4000-5300 |
|
Air consumption(m³/min) |
17-31 |
Dimension(mm) |
4000*1850*2300 |
|
Swing speed(rpm) |
45-70 |
Equipped with hammer |
Medium and high wind pressure series |
|
The penetration efficiency(m/h) |
10-35 |
High leg stroke(m) |
1.4 |
|
The engine brand |
Xichai engine |
||
It is suitable for industrial and civilian drilling and ground temperature drilling. It has the advantages
of large drilling diameter, deep drilling, fast drilling, flexible and efficient, etc.
