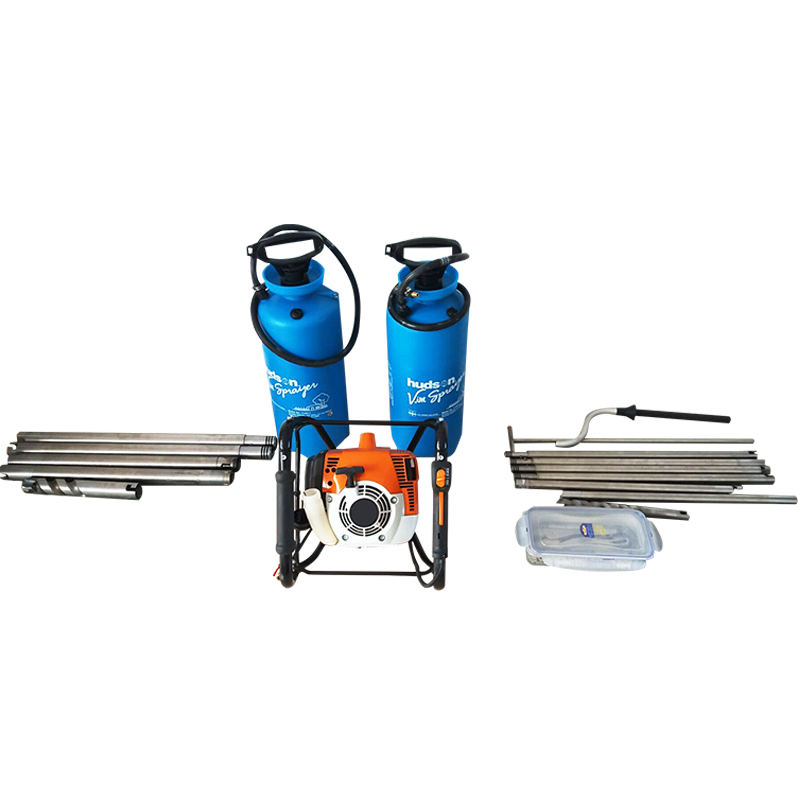

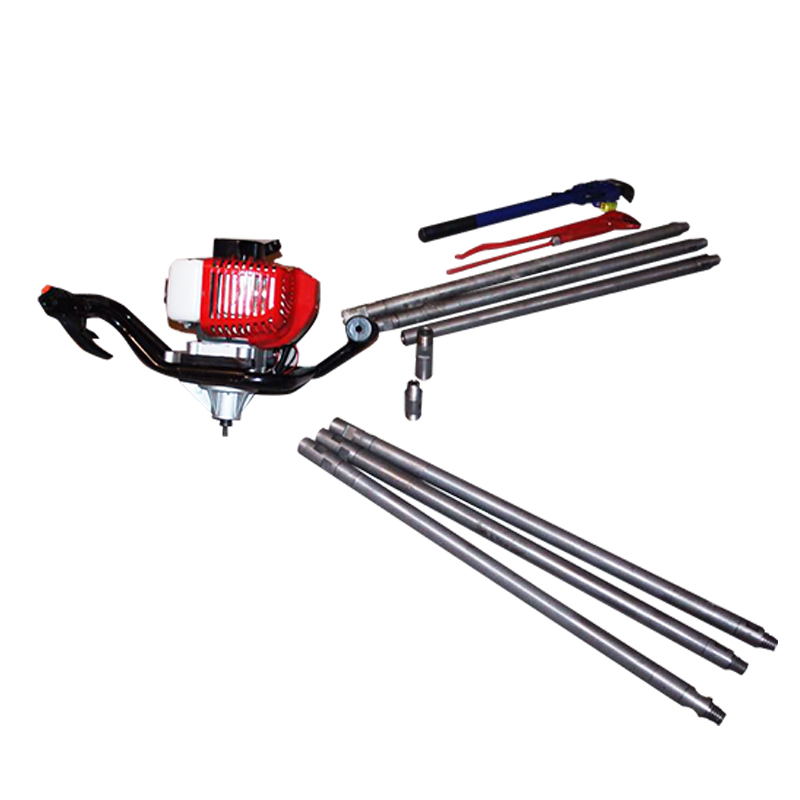

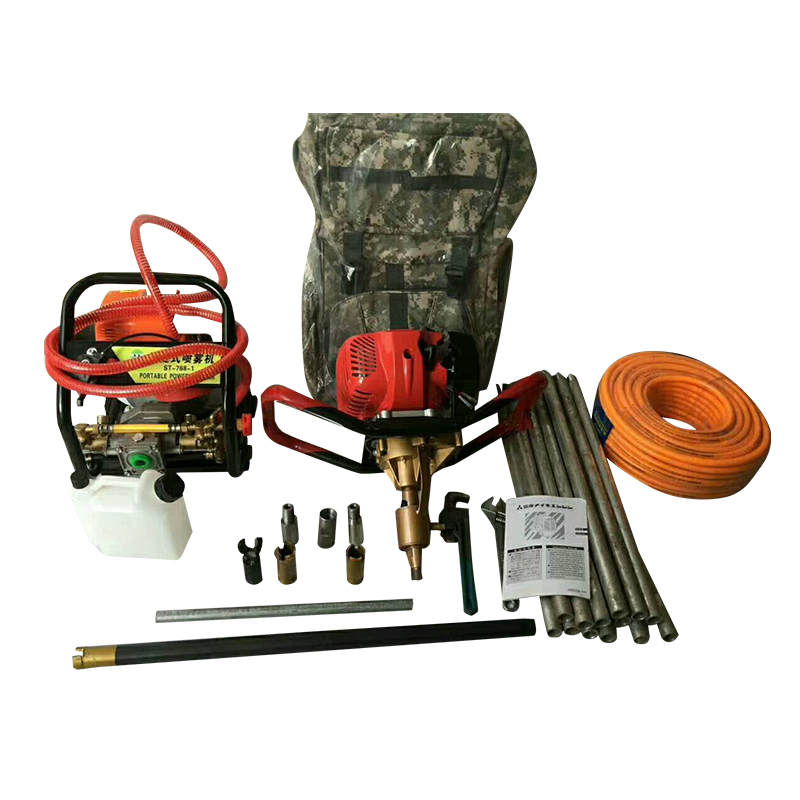

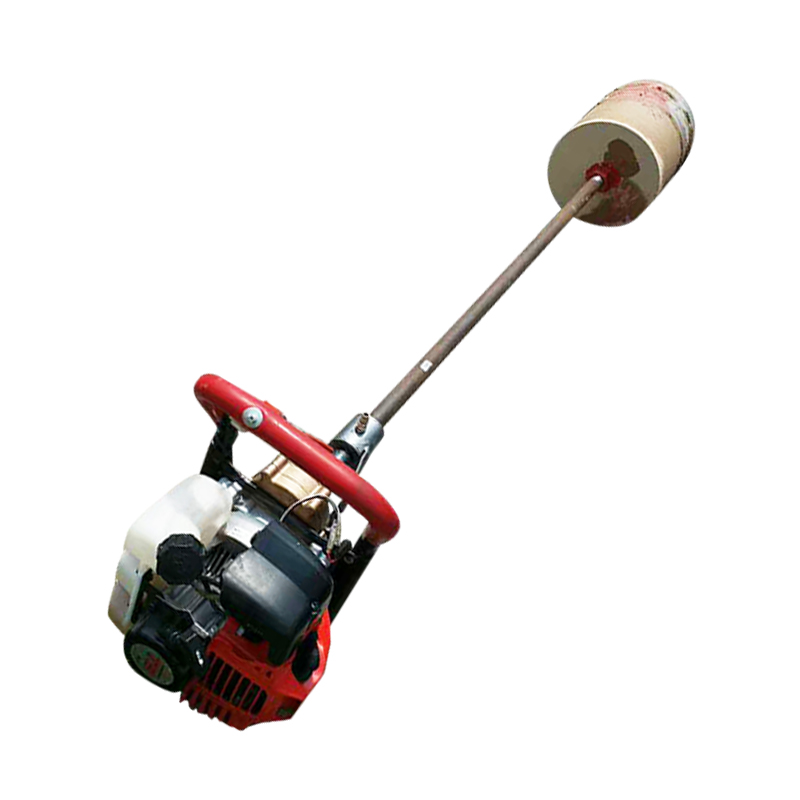

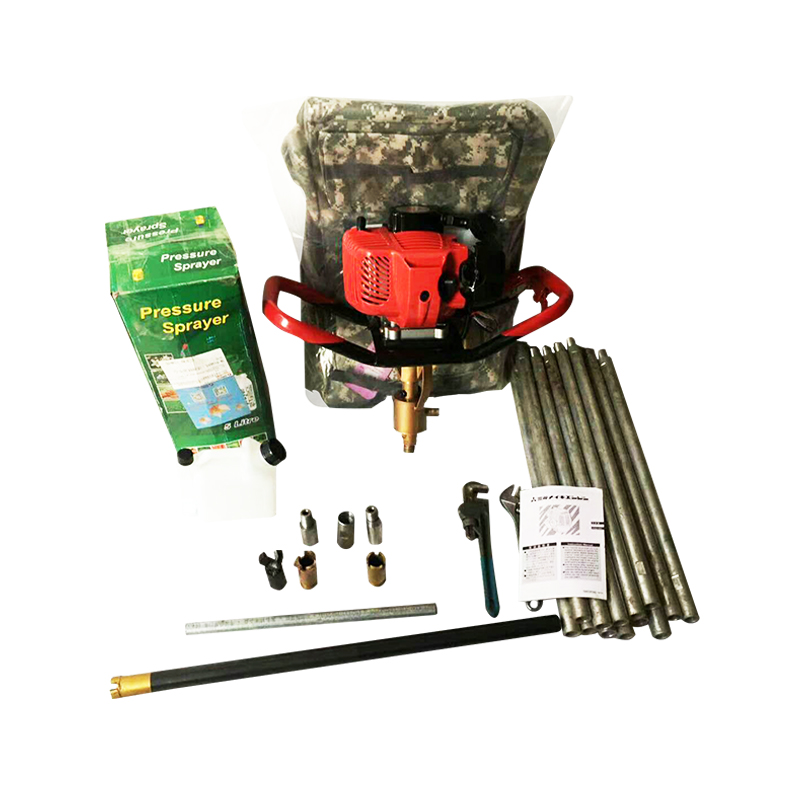

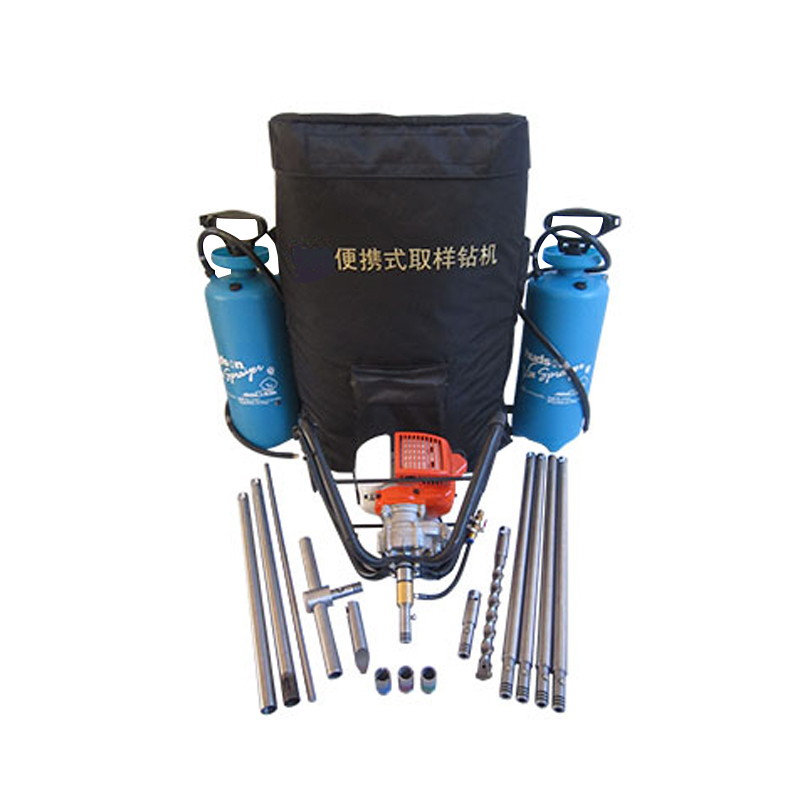

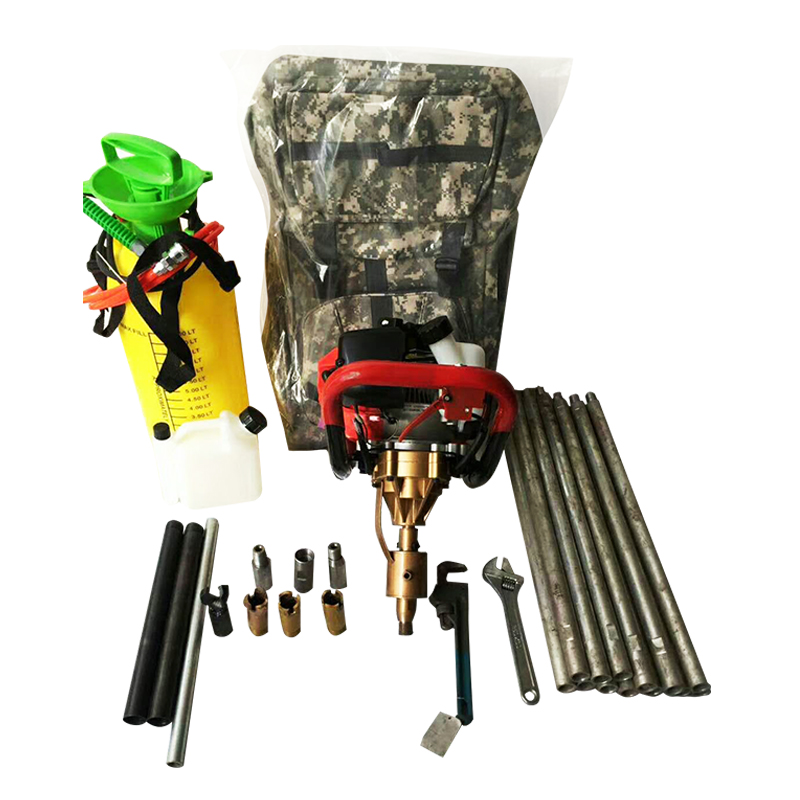

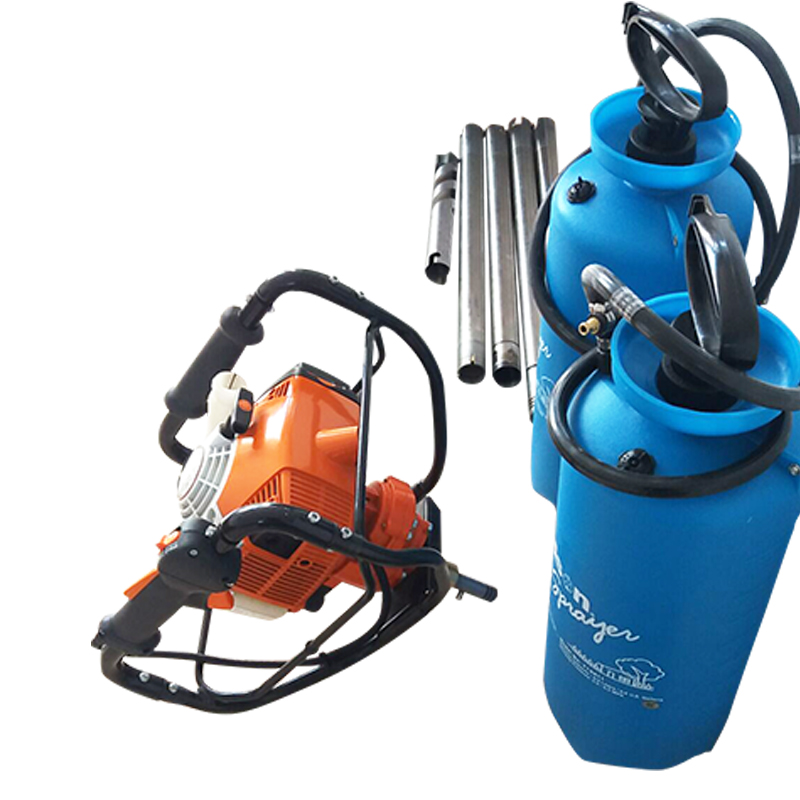

Backpack Core Drilling Rig
Shandong Relied Heavy Industry Co.,Ltd is one of the toppest Backpack Core Drilling Rig in China.During these years of exporting , Shandong Relied Heavy Industry Co.,Ltd now has rich experience in the worldwide markets
  • Parameter
  • Features
  • application

Overall Dimension

380*390*850mm

Water Consumption

15L/h

Water tank size & weight

67.31*33.28cm/ 4.34kg

Gasoline Consumption about

0.58L/h

Drilling speed

1920r/min

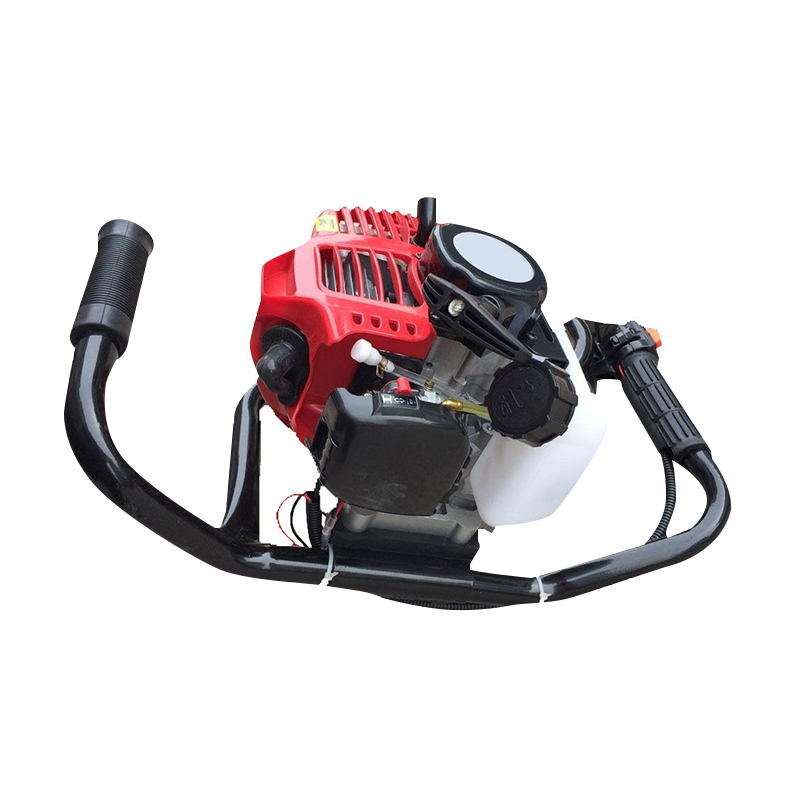

Engine type

Air-cooled 4-stroke petrol engine

Engine size & weight

45*38*37cm/ 8.8kg

Power

1.81Hp

Max drilling depth

30m

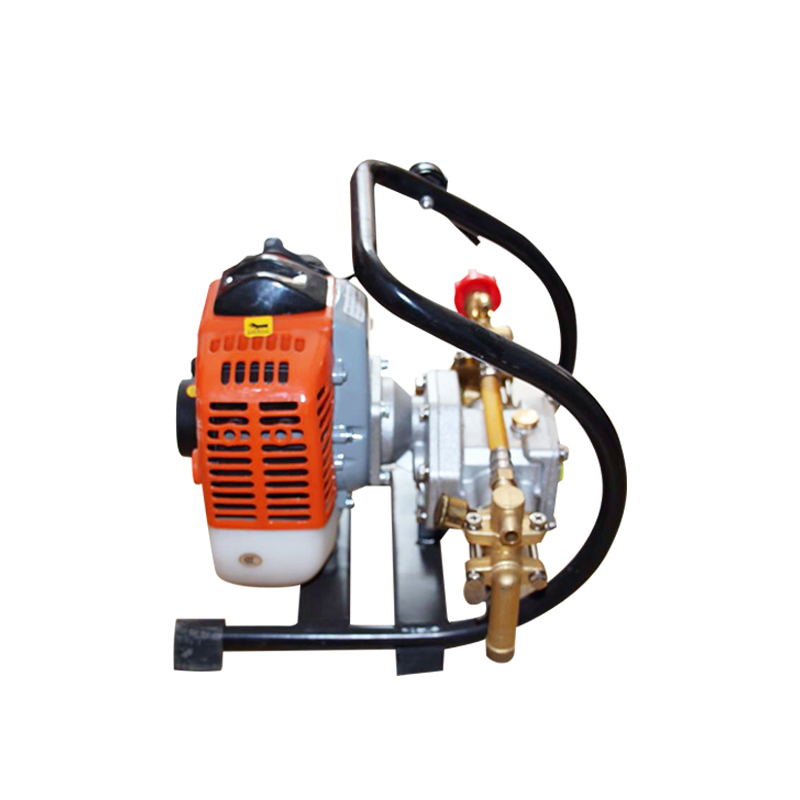

Weight of Water injection pump

4.34kg

Rock core drilling diameter

20.50-36.00mm

Drilling hole diameter

26.40-42.50mm

Backpack size

38*39*85cm

Model

TS-15

Drilling diameter

27-60mm

Drilling depth

≥20m

Applicable media

Soil/ Rock

Water consumption

0.3L/min

Diameter of drilling rod

25mm

Length of drilling rod

625mm

Material of drilling rod

Titanium alloy

Weight of drilling rod

0.65kg/piece

Gasoline engine

Mitsubishi 49cc

Rated power

1.44kw/1.99Hp

Rated speed

7500rpm

Overall weight

9.5kg

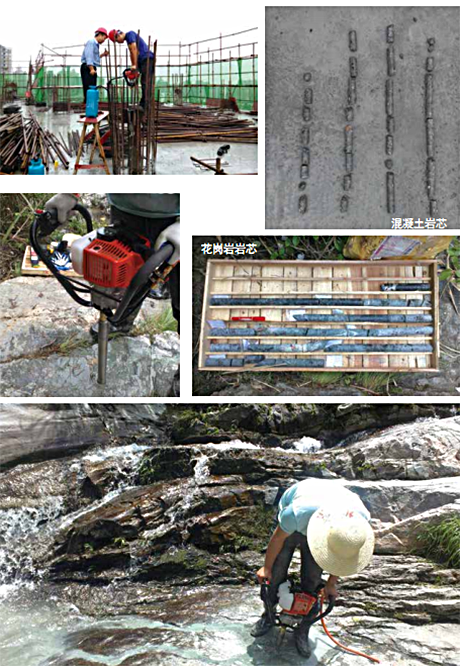

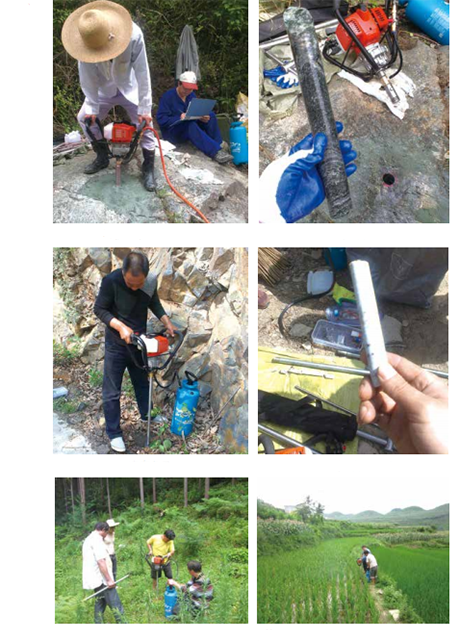

It’s widely used for Geophysical and geochemical exploration, regional geological mapping, mine veins exploration, mineral grade assessment, rock engineering testing, varieties of blasting hole drilling


Features:

Easy to carry – weight for a set of 3m standard rig is only 18kg

Flexible operation - easy to dismantle and install, fast coring

Efficient and durable - ultra-thin wall diamond drill, drilling speed, long service life
