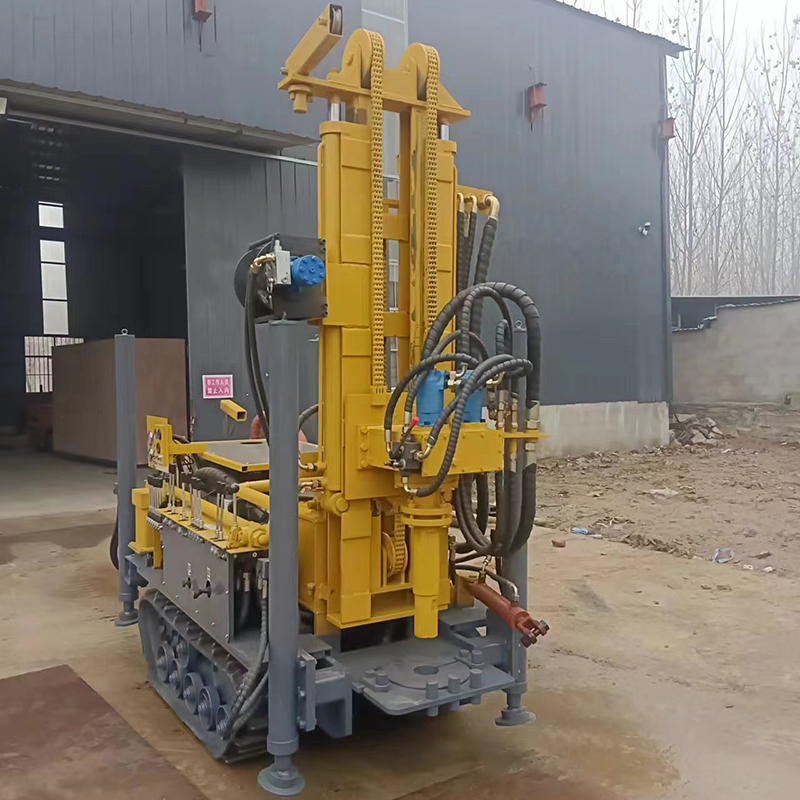

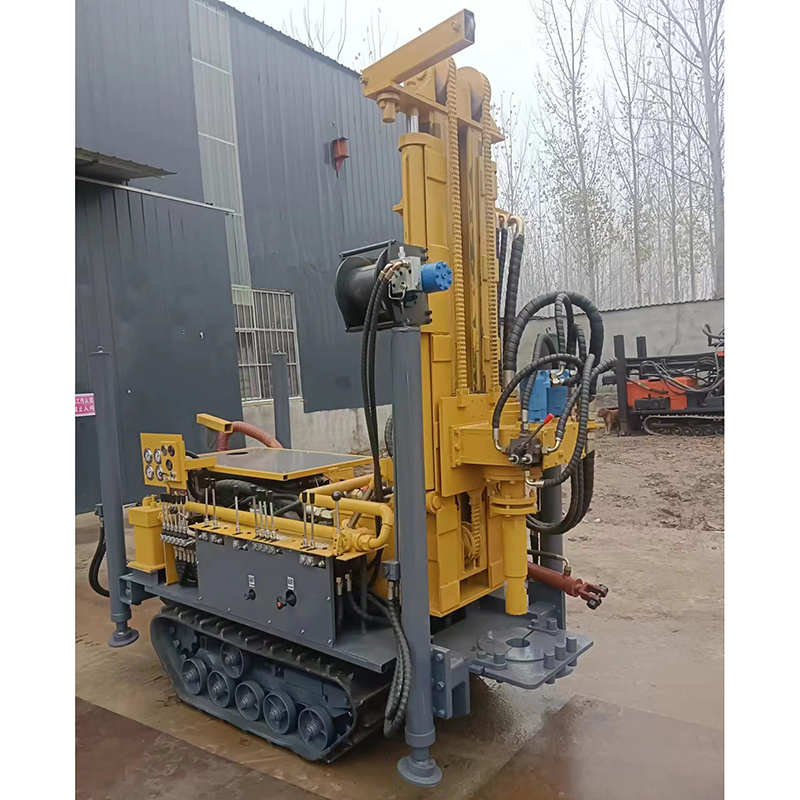

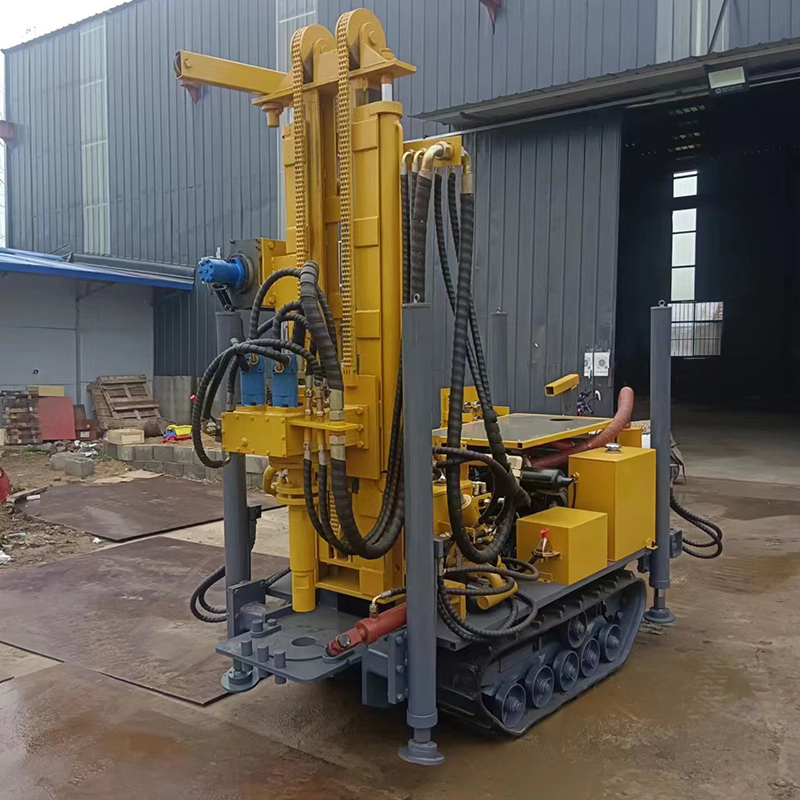

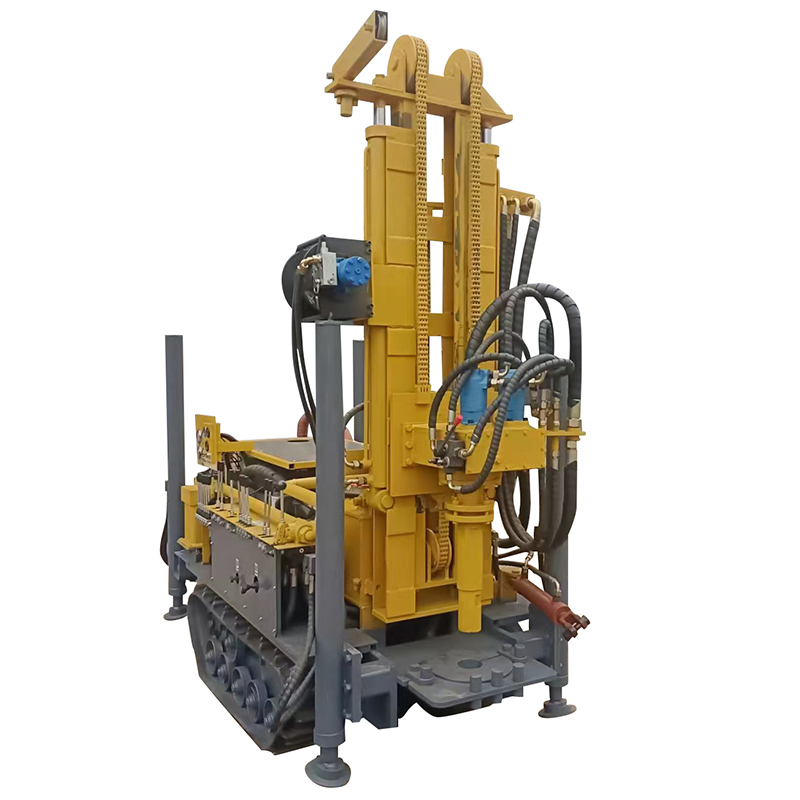

RLD-160A Water Well Drilling Rig
RLD-160A Water Well Drilling Rig
Shandong Relied Heavy Industry Co.,Ltd is one of the toppest RLD-160A RLD-160A Amphibious Water Well Drilling Rig in China.During these years of exporting , Shandong Relied Heavy Industry Co.,Ltd now has rich experience in the worldwide markets
|
Drilling diameter |
Φ130-φ203mm |
|
Drilling depth |
150m |
|
Walking speed |
2.5KMh |
|
Gradeability |
30° |
|
Rotation speed |
65-100r/min |
|
Swing torque |
4500N.m |
|
Maximum lifting force |
10-15ton |
|
Maximum rod length |
2.4m |
|
Air consumption |
10-25m2/min |
|
Working air pressure |
1.2-3.0mpa |
|
Drill pipe diameter |
φ76-φ89mm |
|
Dimensions (L *W* H) |
2000* 1 200* 1750(mm) |
|
Machine weight |
2.6t |
